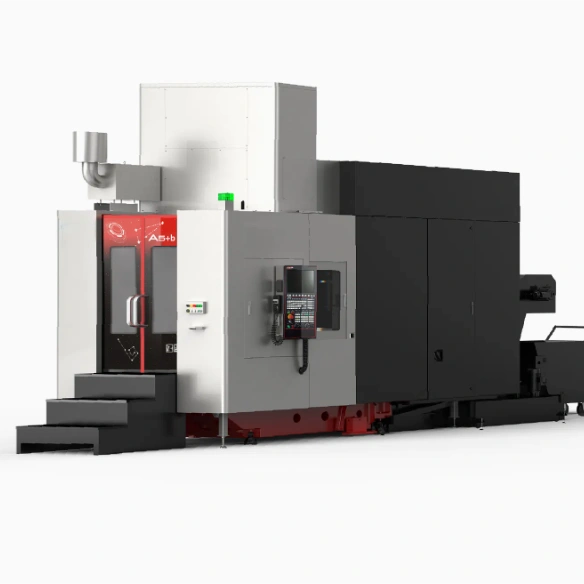

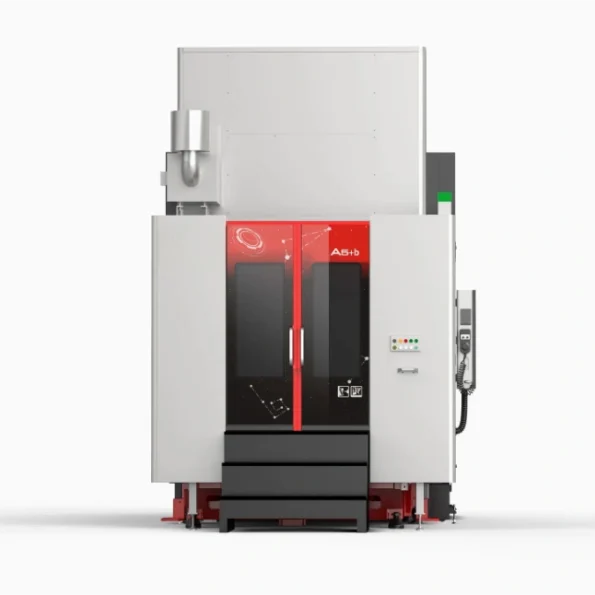

5 Axis CNC Milling Horizontal Machining Center A5+B

Product Description

HIGHLIGHT



1. The whole machine adopts a moving column structure, with the tool moving three axes and the workpiece rotating two axes, which can achieve five axis linkage;

2. Lightweight design, linear axis 90M/min rapid displacement, acceleration 0.8G

3. Both A-axis and B-axis adopt a direct drive structure, with zero transmission chain, zero reverse clearance, and good rigidity; High precision angle encoding

Implement precise positioning.

4. T-shaped layout of the bed, X-axis stepped guide rail layout, light moving parts, and good stress condition;

5. The spindle adopts a high-speed electric spindle, which has fast speed and low noise;

6. Three linear axis roller guide rail, low friction, high rigidity;

Product Parameters

Item		Unit	A5+b
Travel	X/Y/Z axis travel	mm	500/370/400
	Distance from spindle center to A-axis rotation center (Y)	mm	\
	Distance from spindle end face to A-axis rotation center (Z)	mm	\
	The distance between the B-axis disk surface and the A-axis rotation center	mm	\
	Distance from spindle center to workbench (Y)	mm	130-500
	Distance from spindle end face to B-axis rotation center (Z)	mm	130-530
	Maximum rotation diameter of B-axis	mm	800
	Maximum rotation diameter of A-axis	mm	\
Spindle	Main spindle specifications (installation diameter/transmission method)	mm	170/built-in
	Spindle taper hole	mm	A63
	Maximum spindle speed	r/min	20000
	Rated power of spindle motor	kW	30KW
	Rated torque of spindle	N.m	47.7/57.3
Three axis	X/Y/Z axis rapid displacement	m/min	60/60/60
	Axial acceleration	m/S²	8/8/8
	positioning accuracy	mm	0.008/0.008/0.008
	Repetitive positioning accuracy	mm	0.006/0.006/0.006
Turntable	Disc diameter	mm	500*500
	Allow load	kg	500

Products Configurations

Unmatched Precision and Efficiency

The 5 Axis CNC Milling Horizontal Machining Center A5 B is a powerhouse designed for modern manufacturing needs. Built with advanced technology and superior engineering, this machining center ensures precision at an unparalleled level. Whether you aim to produce intricate components or large-scale production projects, the A5 B guarantees seamless execution with remarkable efficiency.

Optimized Versatility for Diverse Applications

Equipped with five-axis capabilities, the A5 B stands out as a symbol of versatility. This advanced machine is designed to handle complex geometries and workpieces that demand simultaneous multi-surface machining. Its horizontal machining structure also enhances stability, making it ideal for a wide range of industries—from aerospace and automotive to medical device manufacturing. No matter your application, the A5 B adapts to your requirements with ease.

Advanced Features for Superior Performance

The 5 Axis CNC Milling Horizontal Machining Center A5 B boasts a series of smart features that elevate its functionality. High-speed spindles ensure reduced machining time, while advanced control systems provide intuitive programming flexibility. Furthermore, its rigid construction minimizes vibrations, resulting in flawless finishes on every project. Expect nothing less than perfection with this machining center’s cutting-edge design.

Engineered for Reliability and Longevity

Durability and reliability are at the heart of the A5 B’s design. Its robust build and high-quality materials ensure that it performs consistently even under demanding conditions. With low maintenance needs and extended operational life, the A5 B is truly a worthwhile investment for any workshop or large-scale production facility looking to streamline its operations and reduce downtime.
