Basic Info.
Model NO.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Max. Worktable Load
1000kg
T Slot(Number-Width-Pitch)
5-18X100
Max Spindle Speed
8000rpm
X/Y/Z Rapid Traverse Speed
24/24/24m/Min
Guide Rail Type
Linear Rail
From Spindle Center to Column Surface
600mm
Transport Package
Plywood Case
Specification
2550*3200*2650mm
Packaging & Delivery
Package Size
255.00cm * 320.00cm * 265.00cm
Package Gross Weight
7300.000kg
Product Description

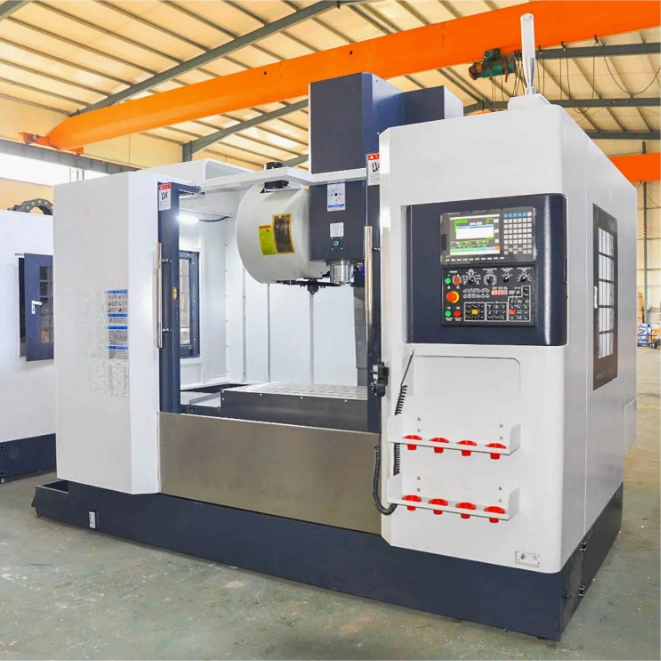

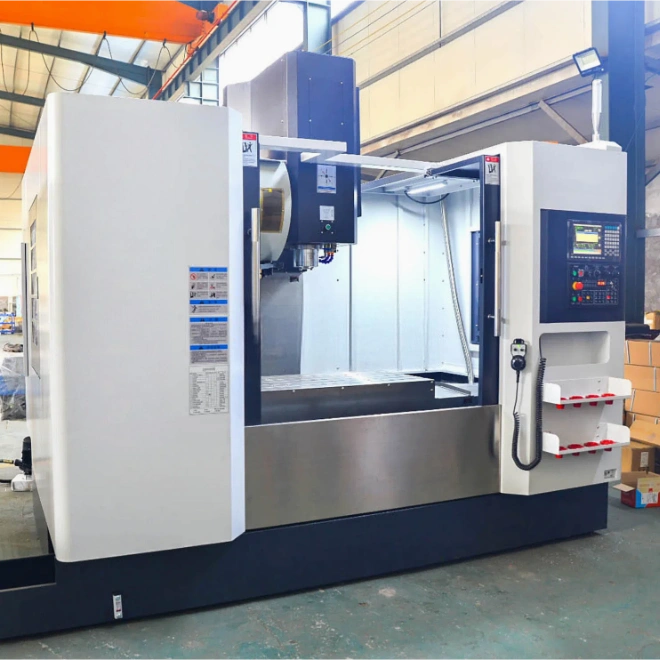

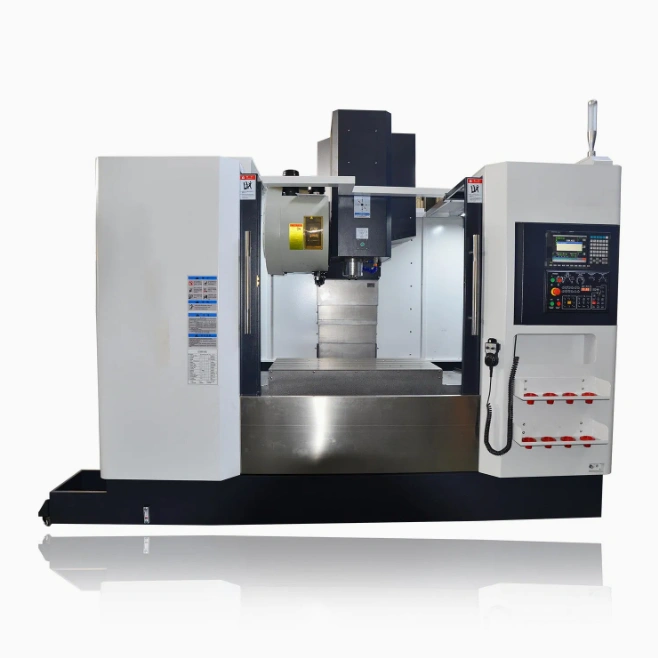

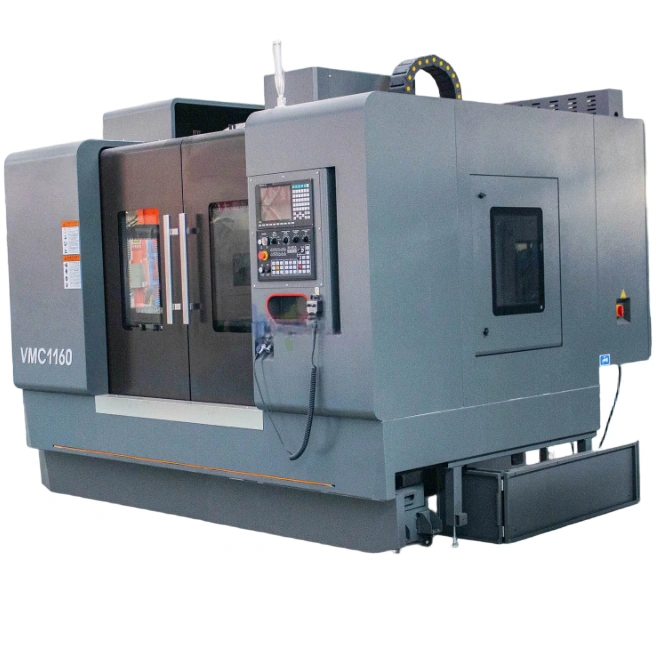

Vertical lathe Vmc1160 3-axis, 4-axis and 5-axis CNC vertical milling machine in CNC metal machine tool machining center of factory
we are the most professinal in making vertical machining center
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail,may satisfy the customer the speed, the precision high request.
3 .Taiwan-made spindle Unit,8000-12000rpm available
4. Taiwan OKADA 24 ATC
5.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSK is suitable for producing metal product and parts in all shapes.
Features:
High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional
Standard configuration
System:KND-1000M
16 Armless Tool Magazine
3 axis linear rail
Optional configuration:
System: SYNTEC,SIEMENS,FANUC
24 Arm Tool Magazine
The 4th axis
Spindle oil cooling
Chip conveyor
Oil-water separator
12000rpm spindle unit
| Main technical specifications |
Specifications |
Units |
VMC1160 |
| Table size |
mm |
1200×600 |
| X axis travel |
mm |
1100 |
| Y axis travel |
mm |
600 |
| Z axis travel |
mm |
600 |
| Max. worktable load |
kg |
1000 |
| T slot(number-width-pitch) |
|
5-18×100 |
| Max. spindle speed |
kg |
8000rpm |
| Spindle taper |
mm |
BT40 |
| Main motor power |
kw |
11 |
| X/Y/Z rapid traverse speed |
m/min |
24/24/24 |
| (Optional:48/48/36 ) |
| Cutting feed speed |
mm/min |
1-10000 |
| Guide rail type |
|
Linear rail |
| Distance from spindle center to column surface |
mm |
600 |
| Distance from spindle nose to table surface |
mm |
120-720 |
| Positioning accuracy X/Y/Z |
mm |
0.0075 |
| Repeated positioning accuracyX/Y/Z |
mm |
0.005 |
| Tools magazine |
|
Arm 24 |
| Max. tool diameter |
mm |
φ78( Adjacent)/ φ120(Apart) |
| Max.tool weight |
kg |
8 |
| Max.tool length |
mm |
300 |
| Machine weight |
kg |
7300 |
| Overall dimension |
mm |
2550*3200*2650 |
Advanced Technology for Superior Milling Performance
The 3-Axis, 4-Axis, and 5-Axis CNC Vertical Milling Machine is designed to meet the diverse needs of modern machining. Whether you are crafting intricate prototypes or handling high-volume production, this machine offers unparalleled precision and efficiency. With cutting-edge CNC technology and robust construction, it delivers consistent results across a wide range of applications. Step up your manufacturing game with a machine engineered to empower innovation and streamline operations.
Customizable Axes for Enhanced Flexibility
One of the standout features of this vertical milling machine is the ability to choose between 3, 4, or 5 axes based on your specific project requirements. The 3-Axis model is perfect for straightforward machining tasks, while the 4-Axis extends its functionality with rotational capabilities for angled cuts. For complex geometries and multi-directional machining, the 5-Axis system provides absolute control over intricate detailing, giving you the freedom to tackle even the most challenging designs with confidence.
Durable Build Meets Precision Engineering
Built with high-grade materials and advanced engineering, this CNC milling machine guarantees durability and consistent performance in even the most demanding industrial environments. Its vertical design optimizes space utilization while ensuring ergonomic operation. The intuitive interface and seamless programming streamline workflow, reducing learning curves for operators new to computer numerical control technology.
Equipped with precision tooling and state-of-the-art software integration, this machine supports a wide variety of materials, including metals, plastics, and composites. From aerospace components to custom automotive parts, its versatility opens doors to endless possibilities. Make this CNC Vertical Milling Machine your go-to production tool, and experience the perfect blend of innovation, reliability, and efficiency to drive your business forward.
