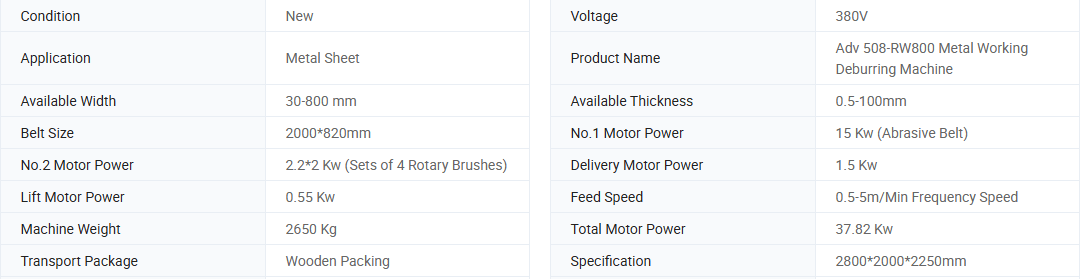

Basic Info.
Model NO.
Product Name
Adv 508-RW800 Metal Working Deburring Machine
Available Width
30-800 mm
Available Thickness
0.5-100mm
No.1 Motor Power
15 Kw (Abrasive Belt)
No.2 Motor Power
2.2*2 Kw (Sets of 4 Rotary Brushes)
Delivery Motor Power
1.5 Kw
Feed Speed
0.5-5m/Min Frequency Speed
Total Motor Power
37.82 Kw
Transport Package
Wooden Packing
Specification
2800*2000*2250mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
280.00cm * 200.00cm * 230.00cm
Package Gross Weight
2650.000kg
>Machine Features:
1. For flat metal plate material (aluminum, copper, stainless steel, etc.) deburred ,brushed, edges rounding and polished.
2. 2.The ZF 508-RW series is used for deburring, edge rounding, and laser oxide removal of various sheet metal parts.(Abrasive belt+Rotary brush).
3. The standard available width is 630mm, 800mm, 1000mm, 1100mm, 1300mm, 1400mm, 1600mm,or customized.
4. The deburring machine can process parts with a minimum size of 30mm*30mm(with a vacuum table).
| Model |
ZF 508-RW630 |
ZF 508-RW800 |
ZF 508-RW1100 |
ZF 508-RW1300 |
| Effective processing width |
30-630 mm |
30-800 mm |
30-1100 mm |
30-1300 mm |
| Processing thickness |
0.5-100mm |
0.5-100mm |
0.5-100mm |
0.5-100mm |
| Minimum Machinable Size |
30*30mm |
30*30mm |
30*30mm |
30*30mm |
| Belt size |
1900*650mm |
2000*820mm |
2000*1120mm |
2200*1320mm |
| Conveying speed |
0.5-5m/min frequency control |
| Number of rotating brushes |
4 |
4 |
6 |
8 |
| Belt motor power |
15kw |
15kw |
18.5kw |
22kw |
| Rotary brush motor power |
1.5kw*2 |
2.2kw*2 |
2.2kw*1/1.5kw*2 |
2.2kw*4 |
| Conveying motor power |
1.5kw |
1.5kw |
1.5kw |
1.5kw |
| Vacuum adsorption motor power |
15 kw |
| Total motor power |
36.42kw |
37.82kw |
42.12kw |
49.22kw |
| Machine size |
2100kg |
2650kg |
3600kg |
4100kg |

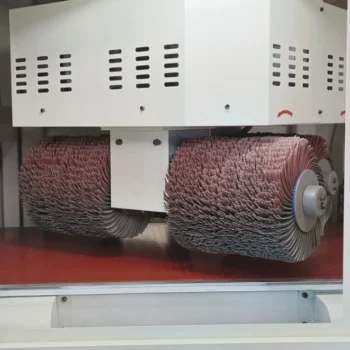

RW series inside view:

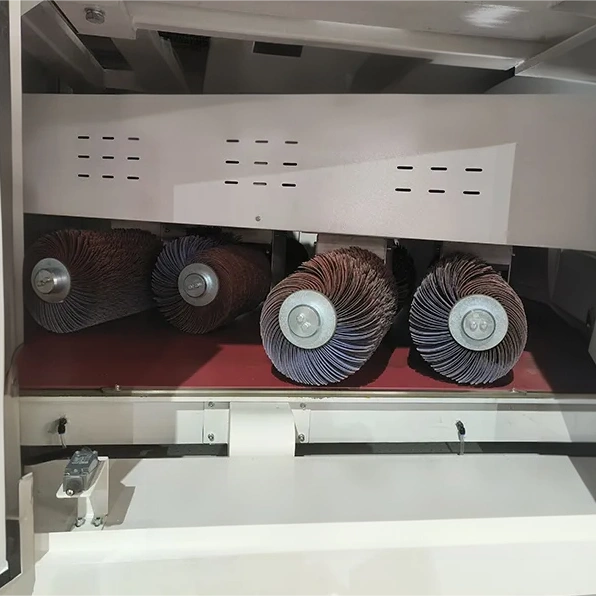

RWR series inside view:

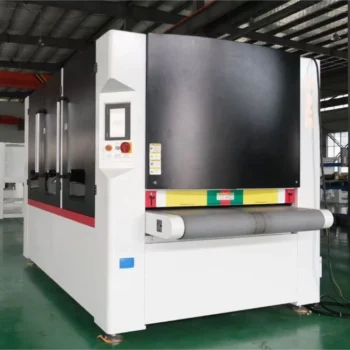

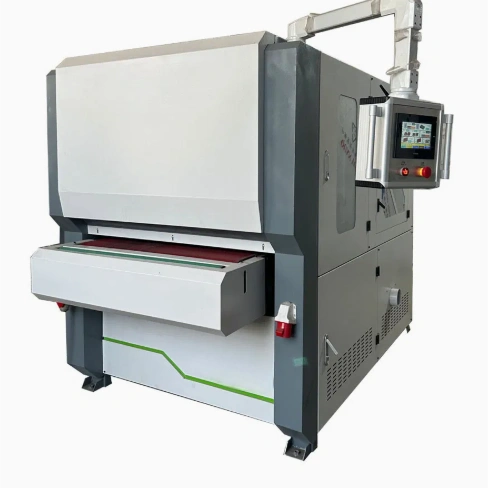

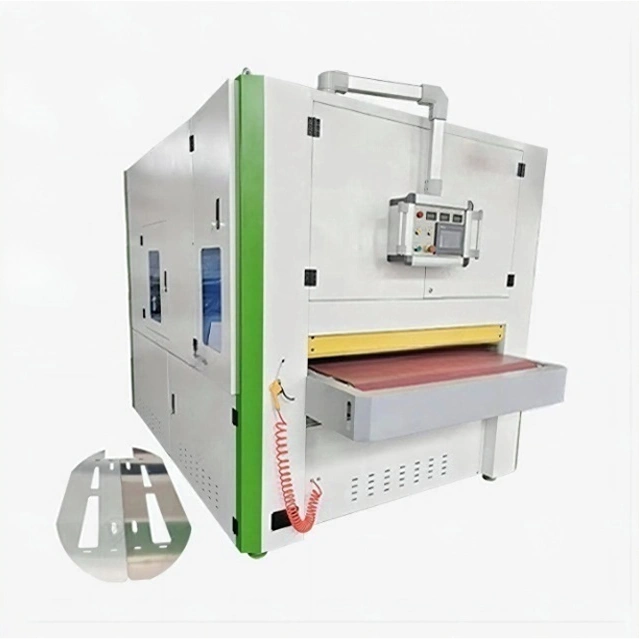

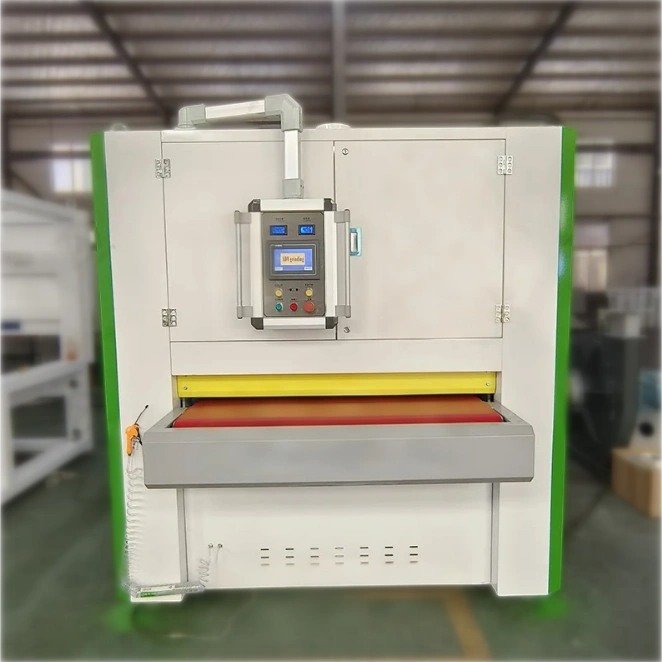

ZF 508-RW SHEET METAL DEBURRING MACHINE
More Time-saving!More Cost-saving!
More stable and better performance!
Consider Everything for Customers, Create More Value for Customers!
Application Materials:ZF 508-RW Metal deburring machine is suitable for stainless steel, steel, aluminium, copper, etc.
Application products:Removal of burrs on laser-cut, waterjet-cut and punched products
Application Industries:ZF 508-RW Metal deburring machine are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Streamlined Metal Processing for Superior Results

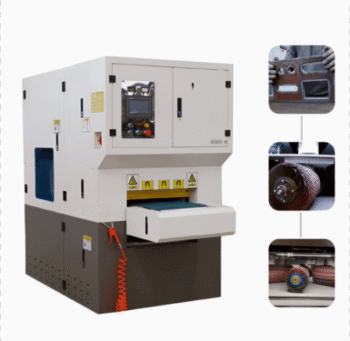

Introducing the Automatic Deburring and Chamfering Machine, a cutting-edge solution designed to meet the highest standards of metal finishing. Whether you’re working on industrial components or precision engineering pieces, this machine ensures exceptional deburring and chamfering results. Say goodbye to manual processes and inefficiencies, and hello to automation that saves time and guarantees consistent output.
Advanced Features for Optimal Performance
This machine utilizes advanced technology to provide accurate deburring and chamfering on a variety of materials. Compatible with metals of different thicknesses and compositions, its adaptability ensures you’re always ready for any project. Equipped with user-friendly controls and safety features, operating this machine is straightforward and hassle-free. Key features include adjustable settings for angle precision, high-speed processing, and robust construction for durability, making it ideal for heavy-duty use.
Maximized Efficiency and Reduced Costs
The Automatic Deburring and Chamfering Machine is built to optimize your workflow. By drastically reducing the need for manual labor and enhancing precision, you’ll significantly cut production costs while maintaining top-tier quality. The machine’s efficient design also minimizes material waste, ensuring sustainable practices for your operations. Whether you’re managing high-volume production or small-scale projects, this machine is the perfect addition to your fabrication setup.
