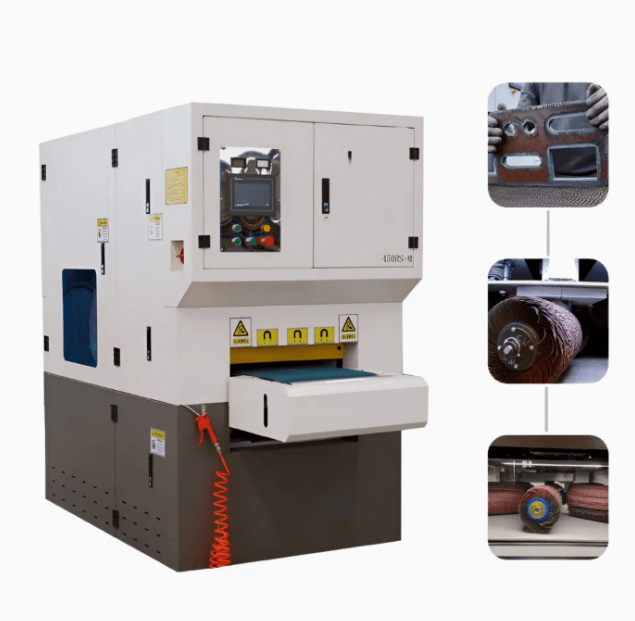

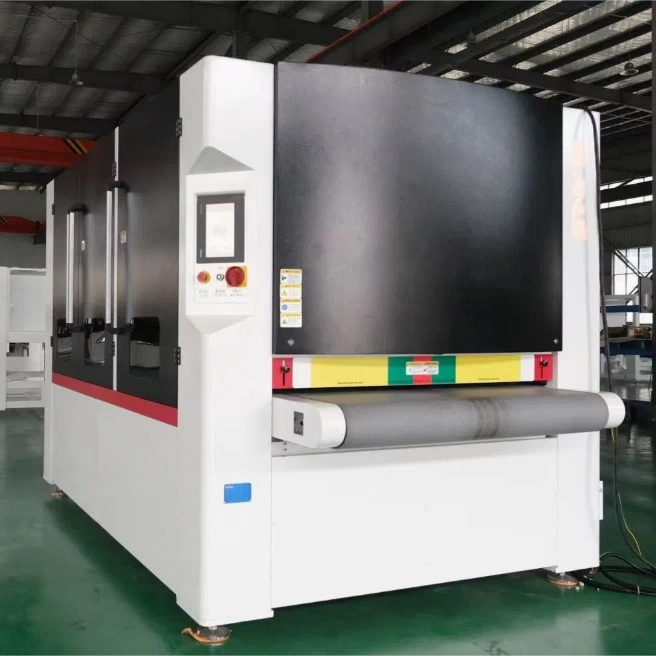

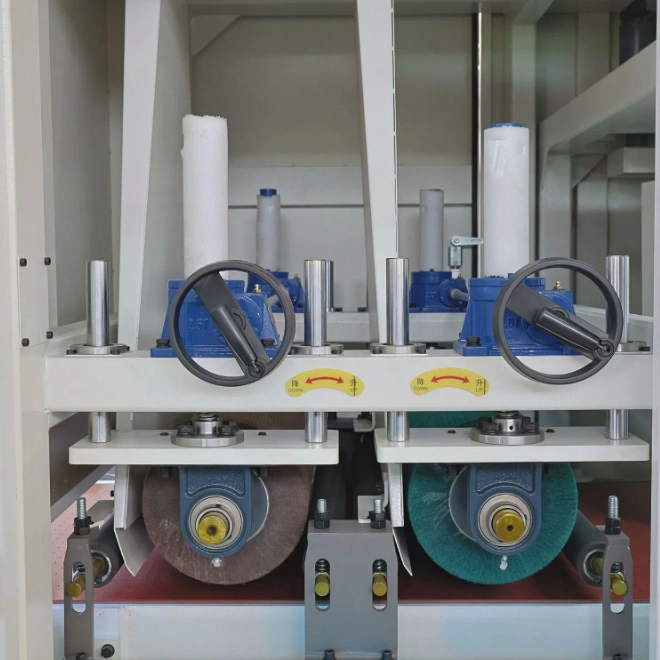

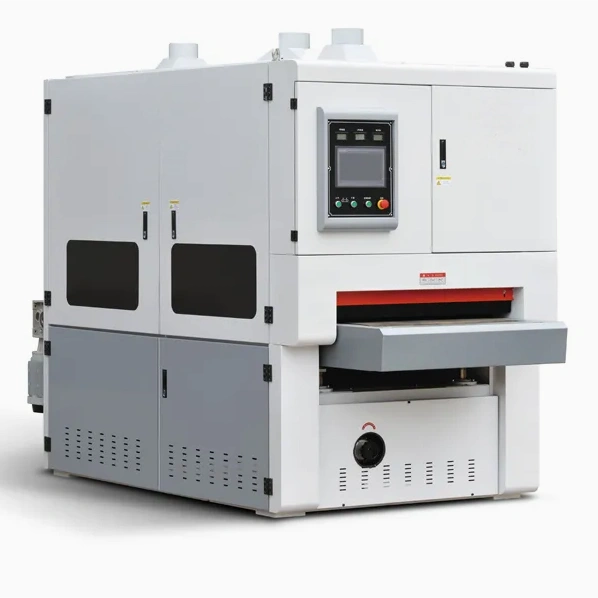

1600mm Working Width Aluminium Metal Stainless Sheet Wide Belt Sanding Polishing Deburring Machine with Rotary Brush

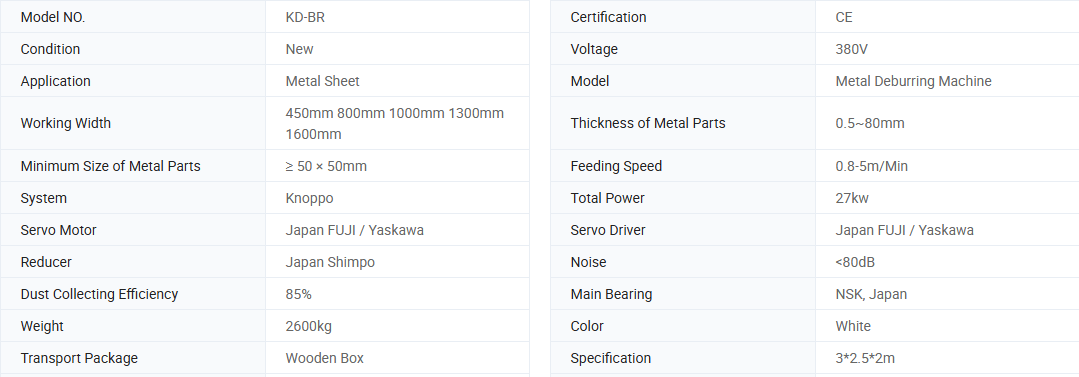

Basic Info.

Model NO.

ZF-BR

Certification

CE

Condition

New

Voltage

380V

Application

Metal Sheet

Model

Metal Deburring Machine

Working Width

450mm 800mm 1000mm 1300mm 1600mm

Thickness of Metal Parts

0.5~80mm

Minimum Size of Metal Parts

≥ 50 × 50mm

Feeding Speed

0.8-5m/Min

System

Knoppo

Total Power

27kw

Servo Motor

Japan FUJI / Yaskawa

Servo Driver

Japan FUJI / Yaskawa

Reducer

Japan Shimpo

Noise

<80dB

Dust Collecting Efficiency

85%

Main Bearing

NSK, Japan

Weight

2600kg

Color

White

Transport Package

Wooden Box

Specification

3*2.5*2m

Trademark

ZOFAITH

Origin

China

HS Code

8479819000

Production Capacity

500 Sets/Month

Packaging & Delivery

Package Size

350.00cm * 200.00cm * 200.00cm

Package Gross Weight

5000.000kg

Product Description



Product Description

Metal deburring machine is a device used for removing burrs and sharp edges from metal workpieces. It typically uses a grinding wheel or cutting tool to process the material, and can remove burrs left over from processes such as sawing, drilling, turning, and so on while also providing a smooth finish to the surface of the workpiece. Metal deburring machines are widely used in industries such as mechanical manufacturing, automotive, aerospace, electronics, and others, and can significantly improve the accuracy and surface quality of workpieces.

Main functions

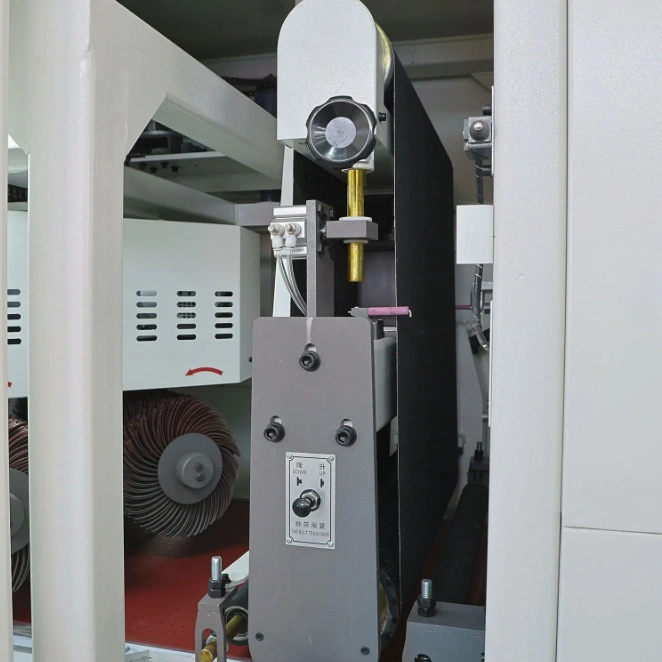

The deburring machine is composed of sand belt, the belts work on metal surface to realize deburring, it is used for removing the burr produced during laser cutting, plasma cutting, etc.



Product Parameters

Parameters of the deburring machine

1. Maximum working width: 1000mm

2. Thickness of metal parts: 1-80mm

3. Minimum size of metal parts: ≥ 50 × 50mm

4. Feeding speed: 0.8-5m/min

5. Total power: about 27KW, the actual operating power is about 20KW.

6. Belt main motor power 11KW*2

7. Conveyor motor power 1.5KW

8. Sand belt size: 1900 × 1020 mm

9. Conveyor belt size: 3020X1000mm

10. Noise: ≤ 80dB

11. Dust collecting efficiency: ≥ 85%

12. Weight: approximately 2.6T

Main configuration of deburring machine

NAME	Specification	Quantity
Belt	1900mm×1020mm	2
Belt main motor power	11KW	2
Conveyor motor power	1.5KW	1
Conveyor belt	3020×1000mm	1

Parts brand

Main motor	Made in china
Electrics	CHNT, China
Frequency converter	Made in China
Electromagnetic valve	China Taiwan Airtac
Control button	CHNT, China
The sand belt deviation correction sensor	Banner, USA
Main bearing	NSK, Japan
Belt bearing	TR



Sample



Unmatched Precision for a Flawless Finish

The Automatic Deburring and Chamfering Machine is designed to revolutionize the way you handle post-production processes. With cutting-edge technology, this machine seamlessly removes burrs and adds precise chamfers to ensure your products have a clean, professional finish. Whether you work with metal, plastic, or composite materials, this tool delivers unmatched reliability, reducing the need for manual intervention and achieving superior results every time.

Streamlined Efficiency for Time and Cost Savings

In a competitive manufacturing landscape, efficiency is key—and that’s exactly where the Automatic Deburring and Chamfering Machine excels. Its automated capabilities drastically reduce processing time, allowing you to meet deadlines without compromising on quality. With consistent performance and minimal operator involvement, you can lower labor costs while maintaining a streamlined workflow. Say goodbye to tedious manual deburring and chamfering tasks and hello to higher productivity.

Customizable Features to Suit Your Needs

Understanding that every project is unique, this machine offers customizable settings to suit diverse requirements. Adjustable speed and chamfer angles give you complete control over the finishing process, ensuring versatility across different applications. With its user-friendly interface, even first-time operators can optimize the machine’s features to achieve the desired outcome effortlessly.

Built with a durable construction and designed for ergonomic operation, the Automatic Deburring and Chamfering Machine is an invaluable addition to workshops, manufacturing facilities, and industrial setups. Elevate the quality of your products, improve your production process, and stay ahead in the competitive market with this must-have equipment.
