Product Name
Zofaith Machine
Keywords
Deburring Machine
Model
ZF-600ss/ZF–800ss/ZF–1000ss/ZF–1300ss/ZF–1600ss
Effective Working Width
650mm/850mm/1050mm/1350mm/1650mm
Deburring Thickness
0.5-80mm
Minimum Machining Dimension
>/=50*50*1 Vacuum Adsorption Table
Belt Size(mm)
1900X650/1900X850/2200X1050/2200X1350/2200X1650
Abrasive Belt Speed
2.2-11m/Sec
Transport Package
Standard Packaging or Customized
Specification
Standard Specifications or Customized
Production Capacity
5000 Units/Year
Packaging & Delivery
Package Size
350.00cm * 250.00cm * 230.00cm
Package Gross Weight
3000.000kg

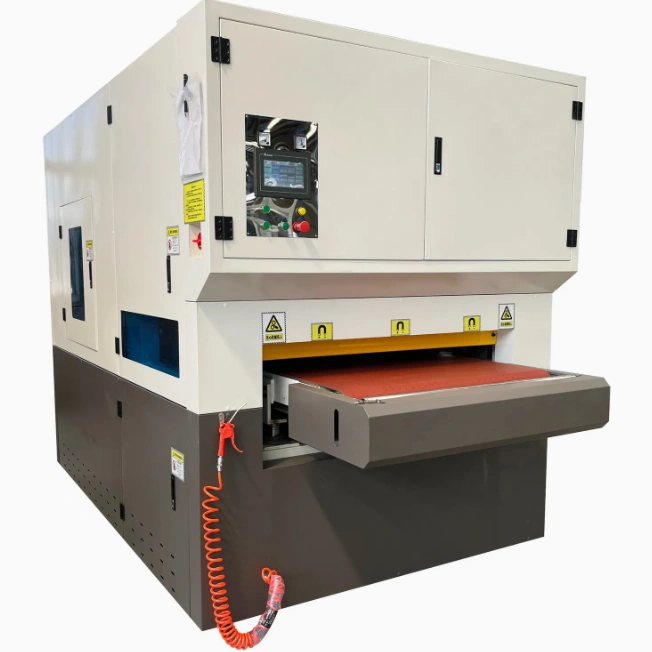

Product Description

Product Parameters |
MODEL |
ZF-600SS |
ZF-800SS |
ZF-1000SS |
ZF-1300SS |
ZF-1600SS |
Effective
working width |
650mm |
850mm |
1050mm |
1350mm |
1650mm |
Deburring
thickness |
0.5-80mm |
Minimum
machining
dimension |
≥50*50*1 Vacuum adsorption table
≥30*30*1 Magnetic adsorption table |
Feed rate |
0.5-6m/min |
Belt size(mm) |
1900×650 |
1900×850 |
2200×1050 |
2200×1350 |
2200×1650 |
Abrasive belt
speed |
2.2-11m/sec |
Table height |
860-980mm |
Bet motor |
7.5kw*2 |
11kw*2 |
11kw*2 |
22kw*2 |
30kw*2 |
Conveyer motor |
1.5kw |
1.5kw |
2.2kw |
3kw |
3kw |
Bench servo
lifting motor |
1kw |
Equipment noise |
≤80dB |
Touch screen |
7inch |
Control system |
PLC |


Polishers, Grinders & Deburrs: A Comprehensive Guide to Industrial Efficiency
In today’s fast-paced manufacturing environment, precision surface preparation has become the invisible backbone of high-quality production. This guide explores how advanced polishing, grinding and automatic deburring machines can solve key industrial challenges while improving operational efficiency. We’ll examine technical specifications, practical applications, and strategic selection criteria to help professionals make informed decisions.
Table of Contents
- Technical Specification Breakdown
- Industry Applications
- User Success Stories
- Machine Selection Criteria
- Operational Best Practices
- Customized Production Solutions
Technical Specification Breakdown
Modern surface preparation equipment requires careful parameter evaluation. Zofaith’s ZF-8000 series embodies the current industry standard with its adaptive torque control and intelligent wear monitoring.
Model |
Work Area |
Power |
Precision |
Automation Level |
ZF-8100 Series |
600×400 mm |
5.5kw |
±0.01 mm |
Semi-automatic |
ZF-8200 Series |
800x500mm |
7.5kw |
±0.005 mm |
Fully automatic |
ZF-8300 Series |
1200x800mm |
11kw |
±0.002 mm |
Smart Factory |
Power requirements vary depending on material hardness. For stainless steel machining, the 7.5kW model offers 23% greater energy efficiency compared to conventional systems while maintaining a surface finish of less than Ra 0.4μm.
Industry Applications
Aerospace component manufacturers particularly benefit from programmable deburring systems. These machines process complex titanium parts while meeting stringent AS9100 quality standards.
Medical device producers require micron-level precision on implant surfaces. Automated polishing systems achieve consistent results on cobalt-chrome substrates, which is critical for biocompatibility requirements.
User Success Stories
Case 1: A German automotive supplier reduced post-machining scrap from 8.2% to 0.7% after implementing Zofaith’s grinding system. Their production line now processes 1,200 transmission components per day with improved surface consistency.
Case 2: A Chinese electronics manufacturer reduced cycle time for aluminum smartphone frames by 40% using a customized polishing workflow. The solution seamlessly integrates with existing CNC machining centers via standardized API protocols.
Machine Selection Criteria
Material compatibility remains a primary consideration. While general-purpose machines exist, dedicated configurations produce better results for specific alloys or composites.
Material Type |
Recommended Abrasive |
Optimal RPM |
Coolant Type |
Aluminum |
Silicon Carbide |
2,800-3,200 |
Water-Based |
Titanium |
Diamond Coated |
1,500-1,800 |
Synthetic Oil |
Stainless Steel |
Ceramic Aluminum Oxide |
2,200-2,600 |
Emulsion |
Operational Best Practices
A preventive maintenance program can significantly impact the life of your machine. Quarterly calibration checks keep positioning accuracy within factory specifications, while daily wheel inspections prevent surface defects.
Customized Production Solutions
Zofaith’s engineering team develops tailored configurations for unique production challenges. Their modular design philosophy allows for a gradual upgrade from semi-automated to fully integrated smart manufacturing systems.。
Conclusion
Choosing the right surface preparation equipment requires balancing technical capabilities with practical operations. Solutions from zofaith.com demonstrate how modern automation can meet precision and productivity needs. For specific technical consultations, please contact our engineers at boss@zofaith.com or (86) 15725163518 to discuss your project requirements.。
